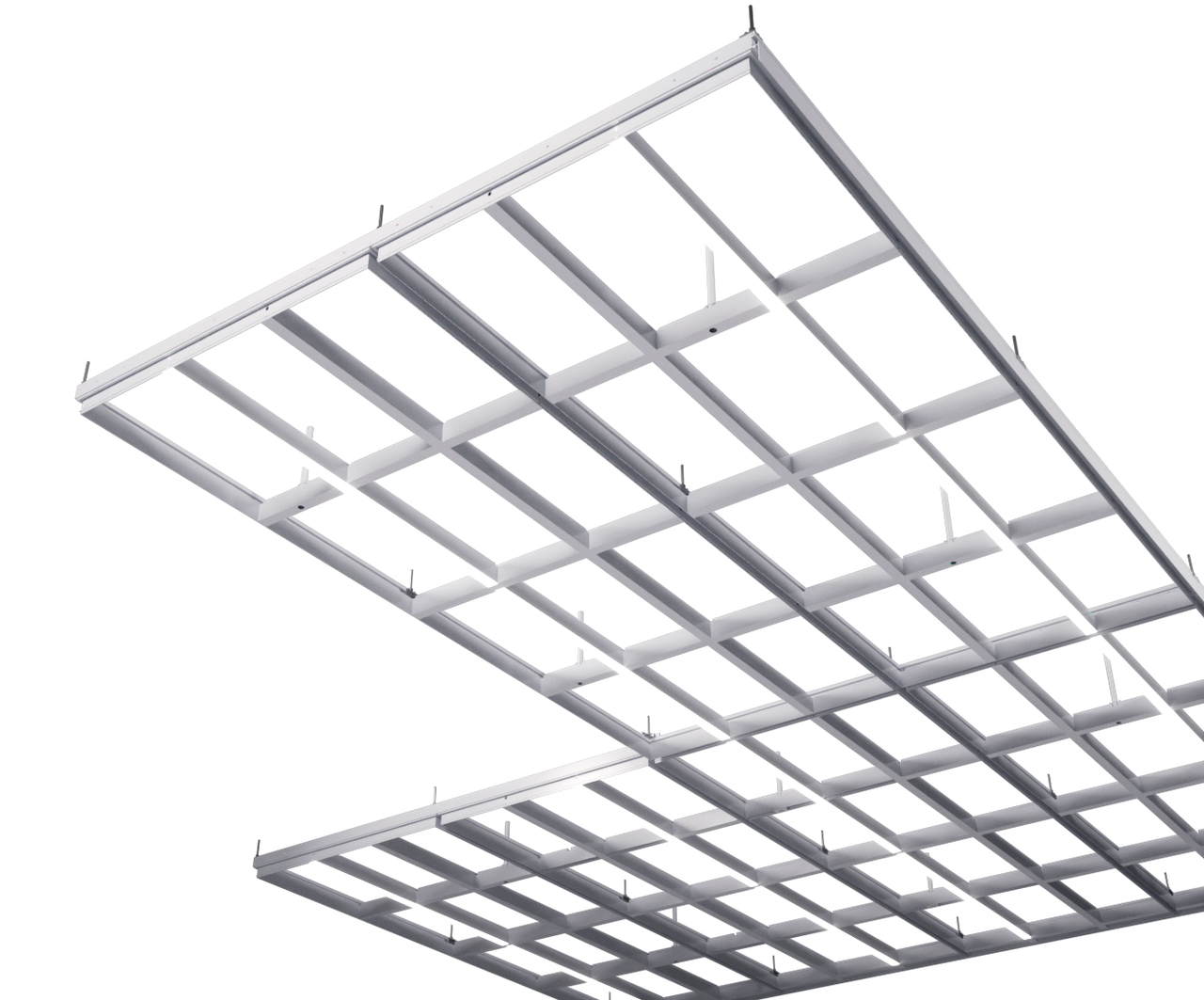

Structural Cleanroom Grid System
Unstoppable Protection

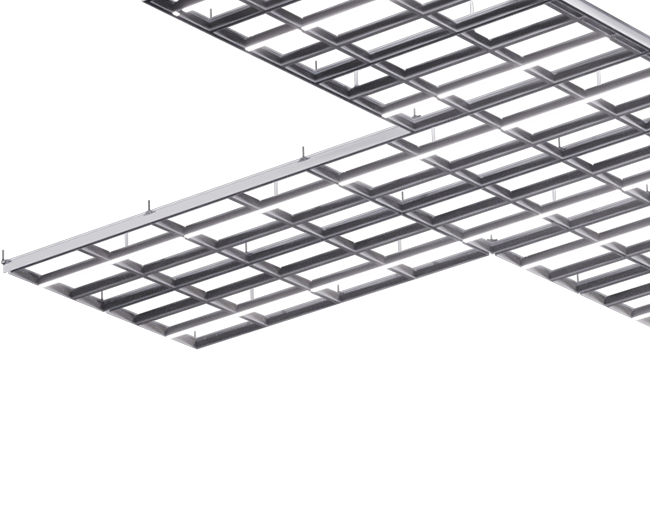

The robust, load-bearing framework integrates the critical barrier seal, lighting, and fire protection into a single, zero-bypass extrusion that doesn’t have to wait for maintenance.

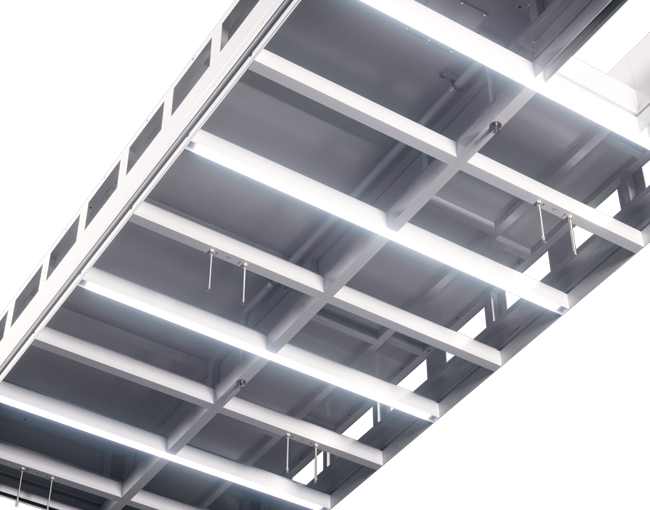

- True Walk-On Capability - Engineered to safely support live loads (maintenance personnel) and dead loads (piping, cable trays), allowing for overhead maintenance without shutting down the cleanroom below.
- Zero-Bypass Seal - Features a continuous, factory-welded channel (Gel or Gasket) that perfectly mates with filter knife-edges, guaranteeing an air-tight barrier against contaminants.

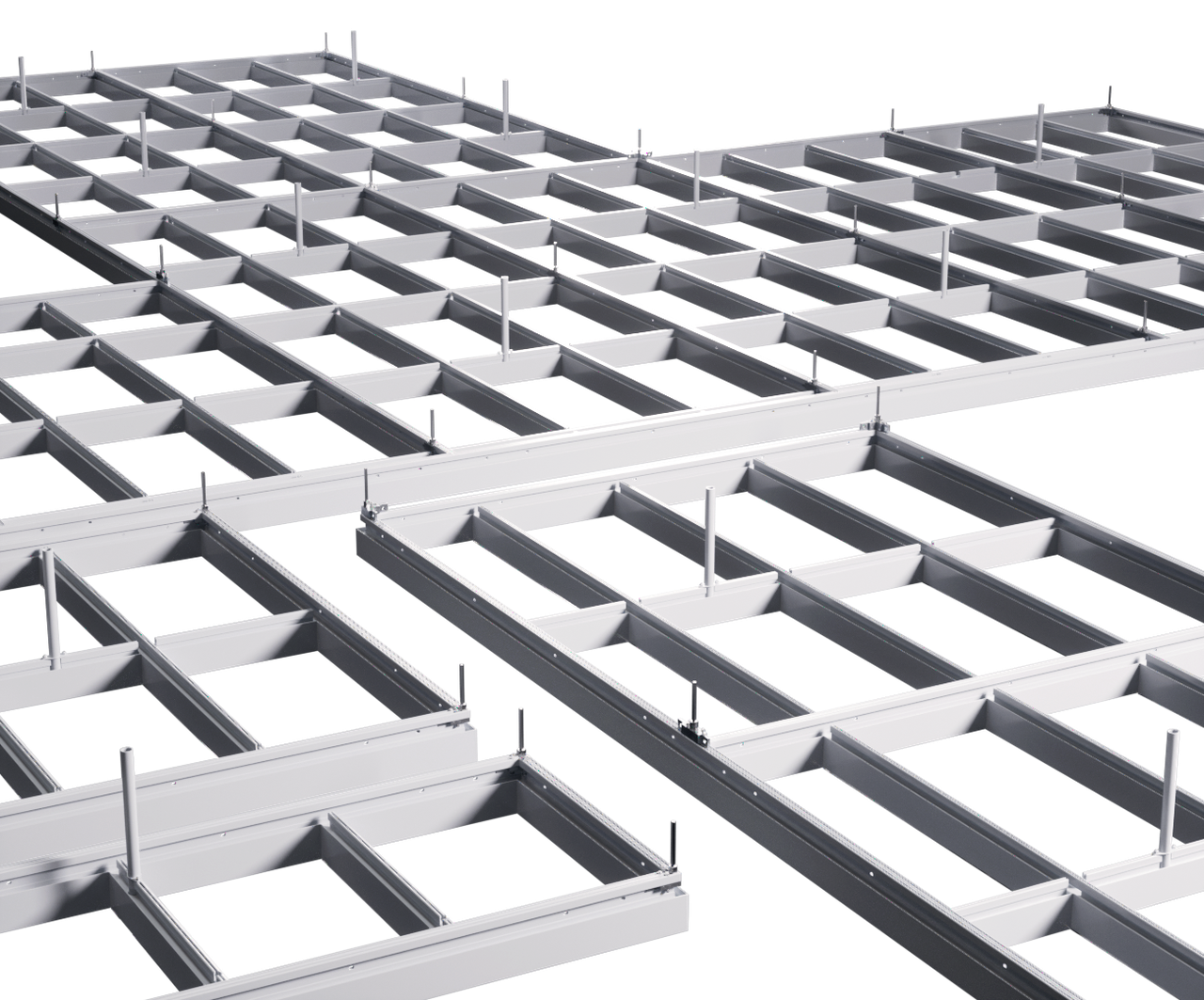

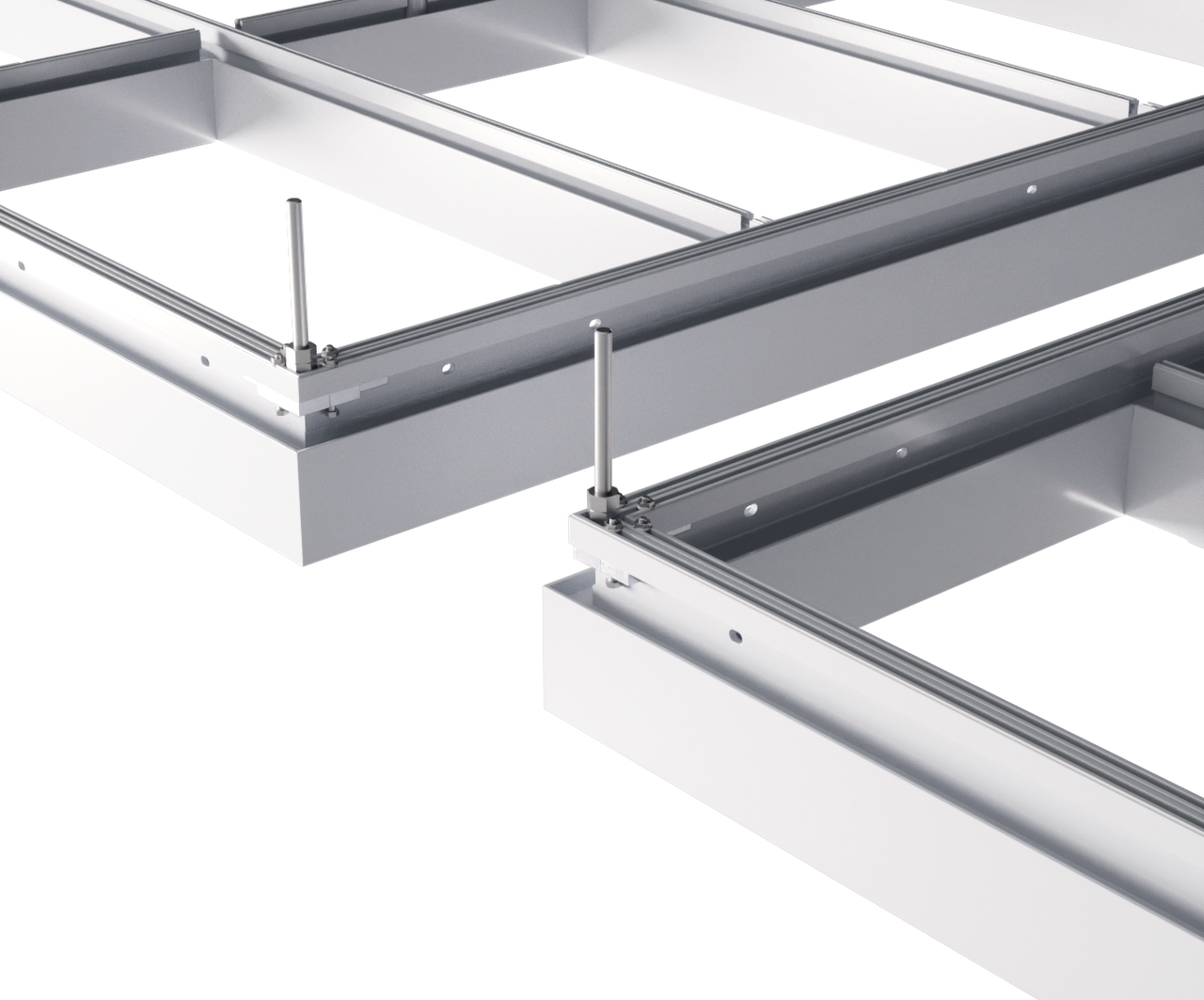

- Modular Installation - Ships in large, pre-fabricated modules (up to 8’ x 20’) to drastically reduce field installation time and labor costs compared to stick-built grids.

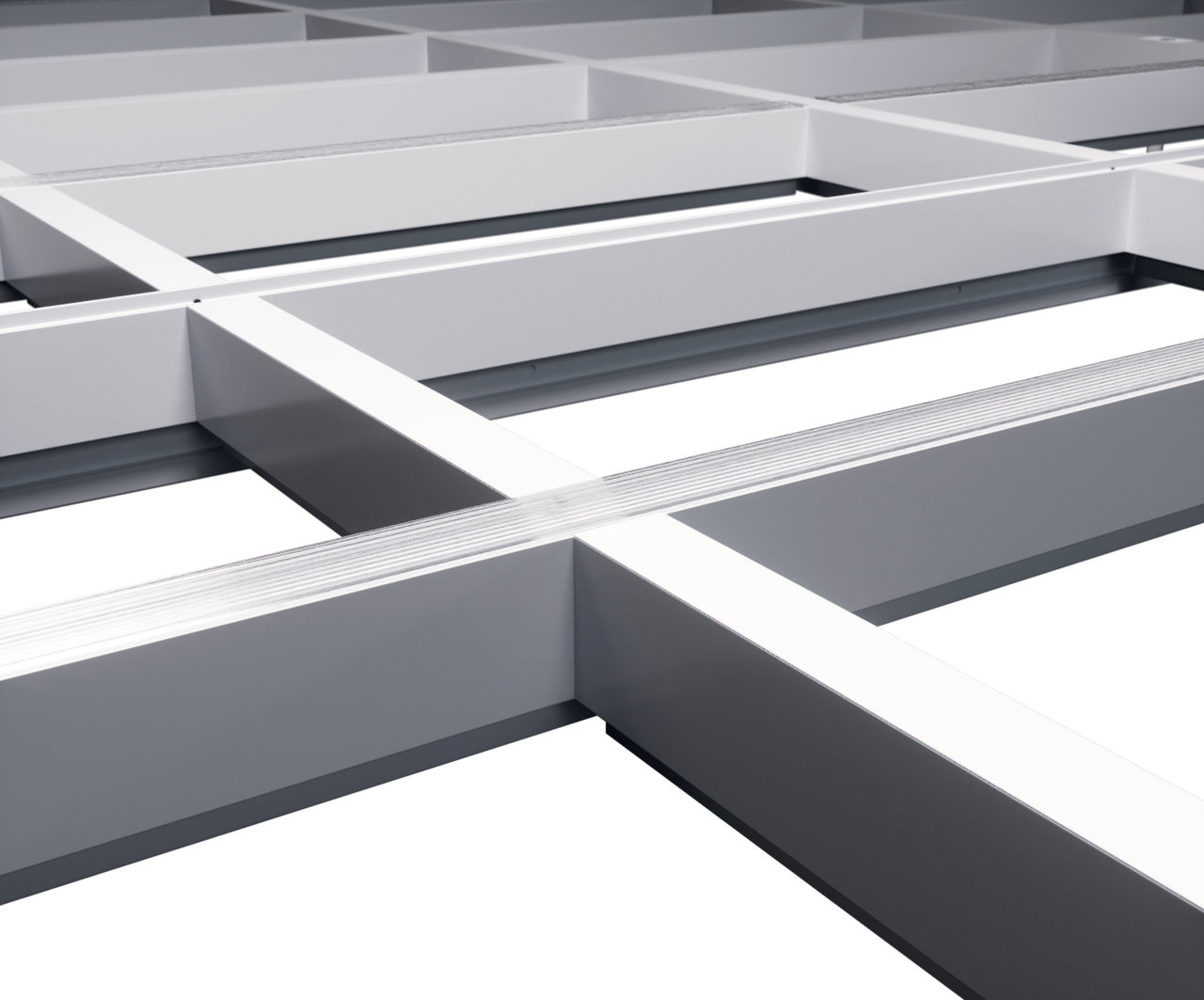

- Hygienic Design - Smooth aluminum or stainless steel extrusions with ¼ turn filter clips eliminate particle-generating screws and difficult-to-clean crevices.
Performance Stats
- Material – Powder-Coated Aluminum, 304 Stainless, or 316L Stainless Steel.
- Configuration - Top Load (Gasket/Gel) or Bottom Load (Gel).
- Module Size - Up to 8’ x 20’ shipping sections.
When Progress Can’t Wait
Our Grid Systems support continuous cleanroom environments with contaminant-blocking design in every detail.
- Semiconductor Fabrication (Fabs)
- Biopharmaceutical Manufacturing
- Medical Device Assembly
Modular Air Plenum

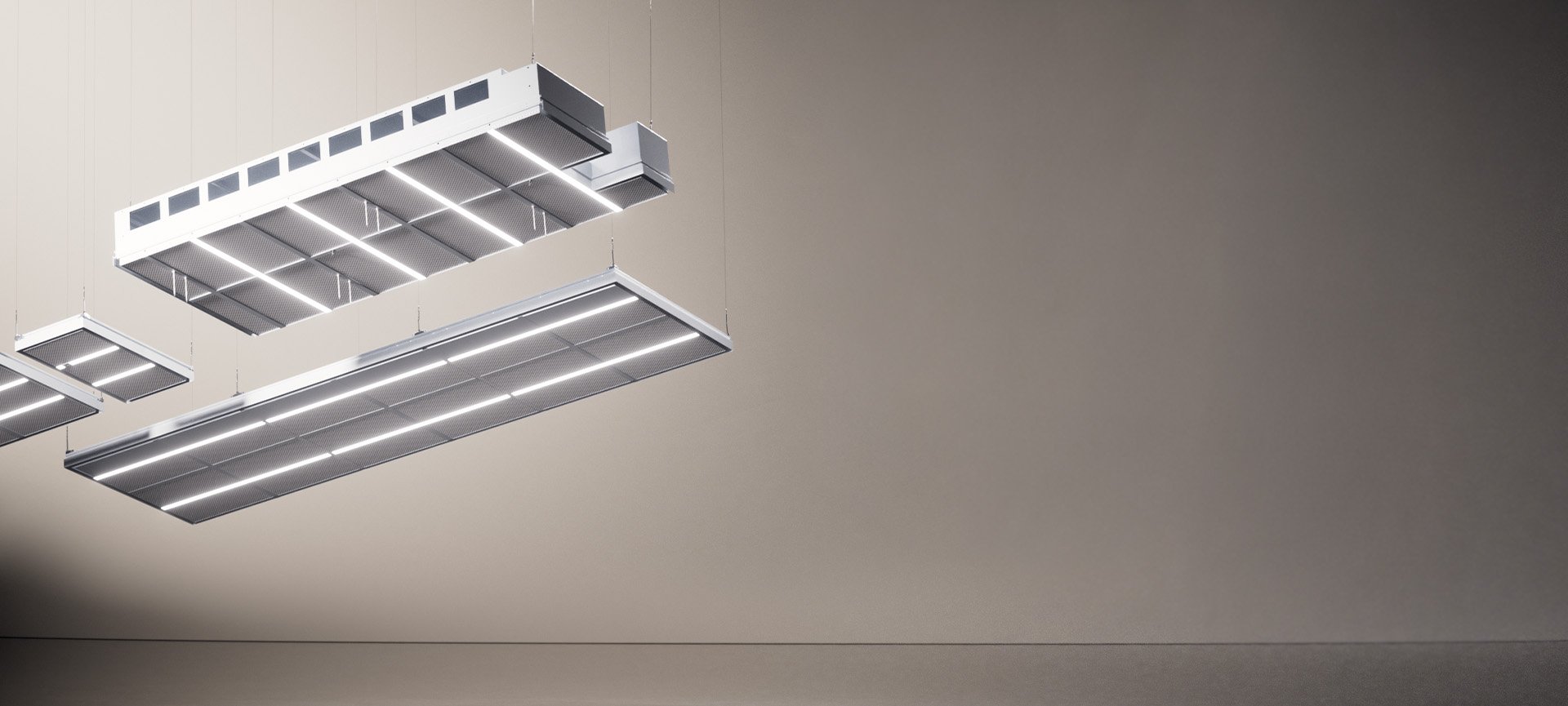

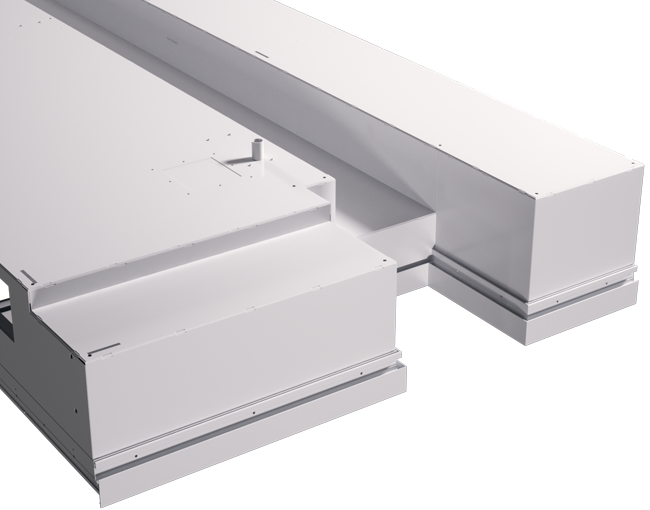

Our Plenum is a custom-engineered air chamber designed for integration with a grid system. It replaces complex, leaky field-built ductwork with a clean, factory-sealed module. Its primary job is to pressurize the air evenly before it passes through the filters. Whether utilizing central building air or its own integrated fans, the Plenum ensures that airflow is uniform across the entire ceiling field, eliminating “dead zones.
Even Pressure for Consistent Performance
Designed to mount onto BASX or alternative grid systems, the plenum replaces leaky, field-built ductwork with clean, factory-sealed modules engineered for uniform airflow.
- Uniform Laminar Flow - Internal baffling and geometry equalize air pressure, ensuring that every filter in the grid receives the same volume of air for consistent downstream velocity.

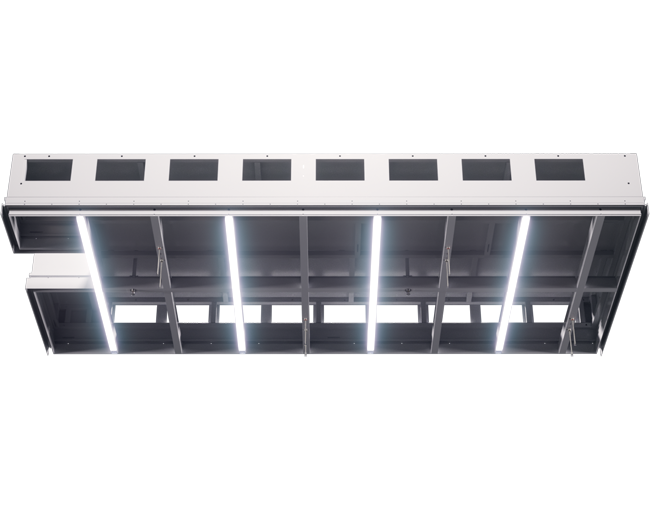

- Fan-Powered Option - Available as a "Fan-Powered Plenum" with integrated high-efficiency EC motors to recirculate air locally, reducing the strain on central air handlers.

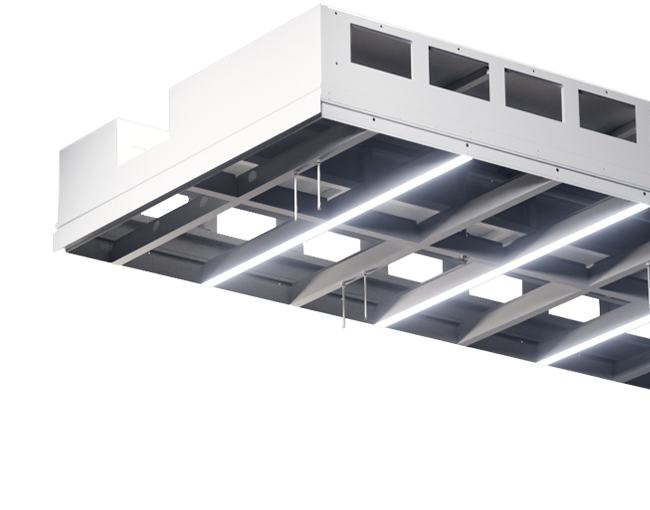

- Eliminates Field Ductwork - Large-format modular boxes drop directly onto the grid, removing the need for time-consuming ductwork sealing and insulation on site.

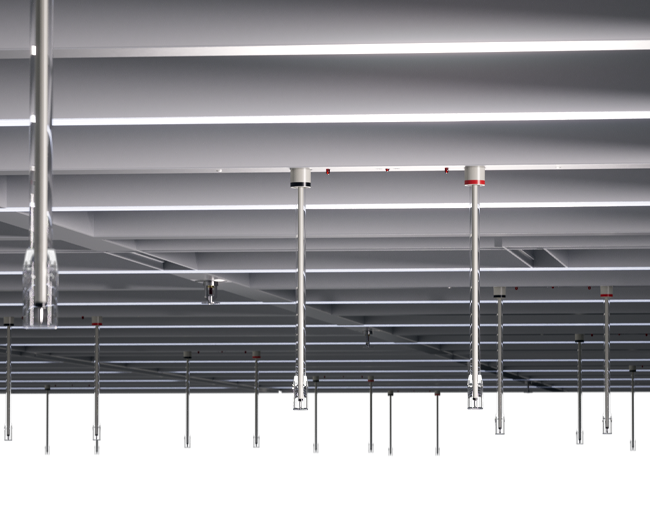

- Integrated Utilities - Can be pre-wired and pre-plumbed with fire protection (sprinklers) and ionization systems at the factory to speed up installation
Performance Stats
- Construction - Double-wall, insulated, fully sealed metal panels.
- Fan Type - High-efficiency EC fans (fan-powered models)
- Integration - Designed to mate with BASX Grid (but adaptable to existing structural grids).
Factory-Built for Field Success
Erase dead space in your existing ductwork for optimal performance in critical environments.
- ISO 5 – ISO 8 Cleanrooms
- Pharmacies (USP 797/800)
- Microelectronics
