Fan Coil Walls

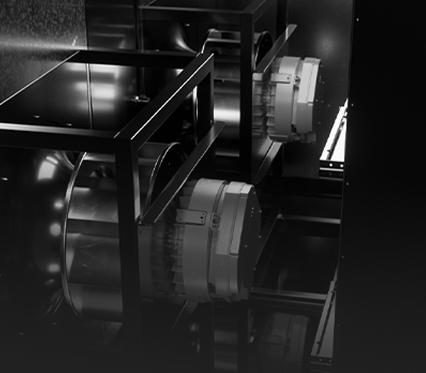

Unrelenting Fan Power
High-Performance Airflow
Lifetime hybrid ceramic bearings deliver consistent airflow while reducing harmonics, motor heat, and static pressure.
Lower Energy Demand
Reduced motor heat helps minimize system kW consumption and improve overall efficiency.

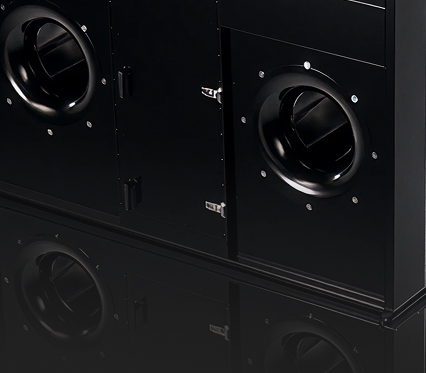

Optimized Access
Single-side gallery access enables full serviceability with no side clearance required, streamlining installation and maintenance.

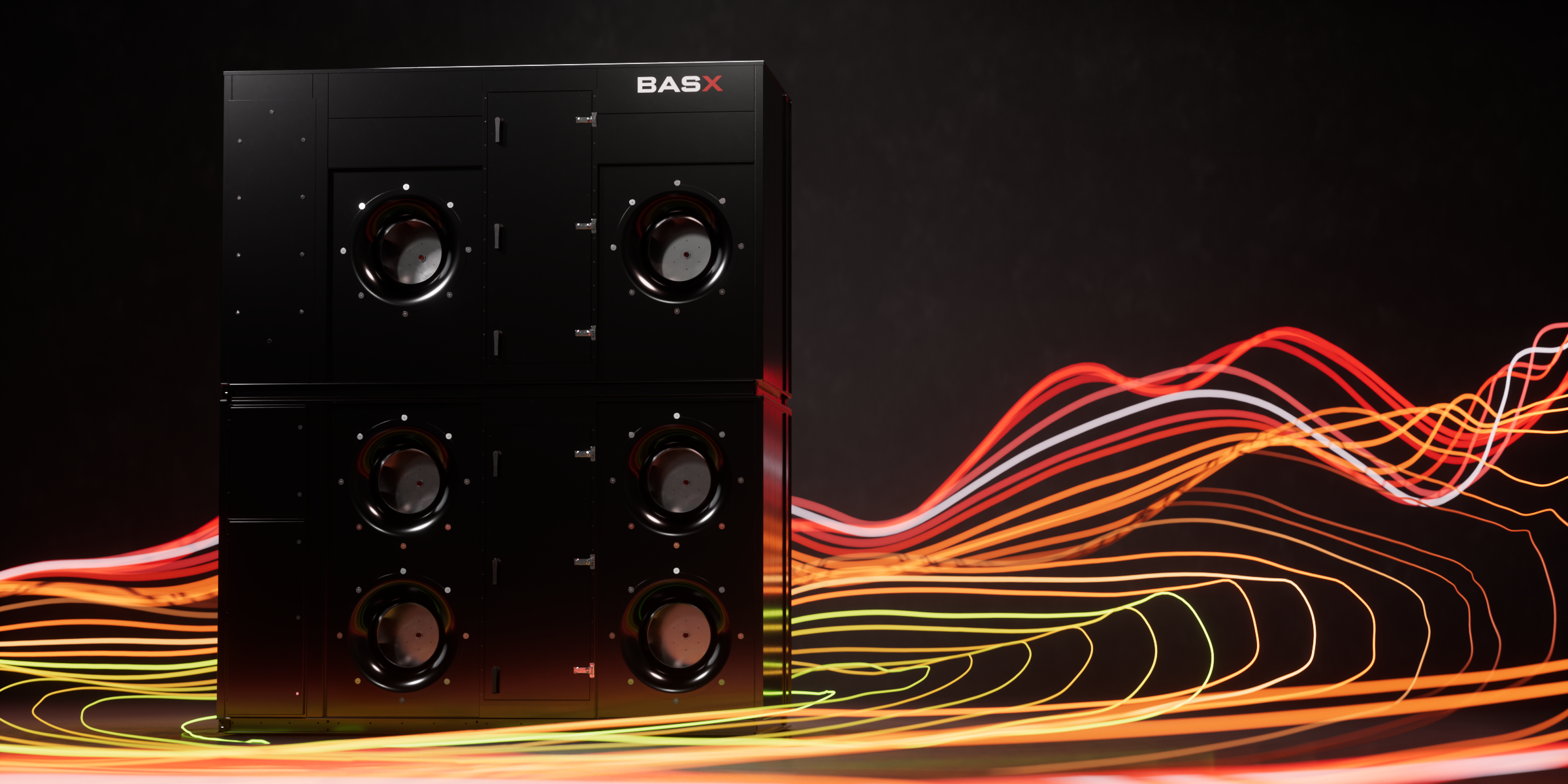

Fan Coil Wall (FCW)
Our FCW replaces multiple floor-standing units with a continuous, high-efficiency cooling array. A wall of redundant fans and optimized coils floods the data hall with a uniform laminar wall of air, moving cooling infrastructure to the perimeter and freeing up valuable white space for servers.
/QTSFCW_Angles_A_v01-edit.png?width=650&height=510&name=QTSFCW_Angles_A_v01-edit.png)
/QTSFCW_Angles_B_v01-edit.png?width=650&height=510&name=QTSFCW_Angles_B_v01-edit.png)
/QTSFCW_Angles_C_v01-edit.png?width=650&height=510&name=QTSFCW_Angles_C_v01-edit.png)
/QTSFCW_Angles_D_v01-edit.png?width=650&height=510&name=QTSFCW_Angles_D_v01-edit.png)
/QTSFCW_TabImage_A_v01-edit.png?width=650&height=510&name=QTSFCW_TabImage_A_v01-edit.png)
More Room for Moneymakers
The FCW is a perimeter-based solution that maximizes revenue-generating space and eliminates server hot spots.
- Uniform Airflow - Validated by CFD modeling, the "blow-through" design delivers a predictable, low-velocity wall of air that eliminates dead zones and hot spots.
- Maximum White Space - Our FCW removes the need for cooling units on the server floor, increasing the available square footage for IT racks.
- N+1 Redundancy - Multi-fan design ensures constant full cooling capacity, with automatic airflow adjustments in the case of a fan failure.
- Extreme Efficiency - Designed with fan affinity law, using significantly less energy by running many fans at lower speeds than running a few fans at high speeds.
- Custom Fit - The wall dimensions are engineered to match the exact height and width of your facility, ensuring a perfect seal and optimized airflow.
- Installation - Lower MCA (minimum circuit ampacity) and MOP, line sizing to protect units.
By the Numbers
Engineered for the upper limits of air-cooled density, our FCW transforms your perimeter into a high-performance heat rejection engine. The system maximizes the potential of air-side infrastructure, handling challenging thermal loads without the complexity of liquid deployment.
- Cooling Capacity Range - 150 - 800+ kW / 45 - 225+ Tons.
- Airflow Range - Up To 80,000+ CFM.
- Fans - High-efficiency EC fan arrays.
- Maintenance - Front or rear access available based on building layout.
Purpose-Built for Data
Our FCW is the go-to solution for enterprise data centers and retrofit upgrades, offering a customizable footprint for constrained spaces and precision cooling needs.
- Hyperscale Data Centers
- Large Colocation Facilities
- Enterprise Data Centers
