Grid Systems
Off Days Aren't An Option
Zero Bypass
A continuous channel perfectly fitted for filter knife-edges guarantees an airtight barrier for cleanroom environments.
Maximum Uptime
Engineered to safely support live loads, our grid system allowsfor overhead maintenance without cleanroom disruption.
Rapid Install
Shipped as large, prefabricated modules, the grid system drastically reduces field installation time and labor costs.

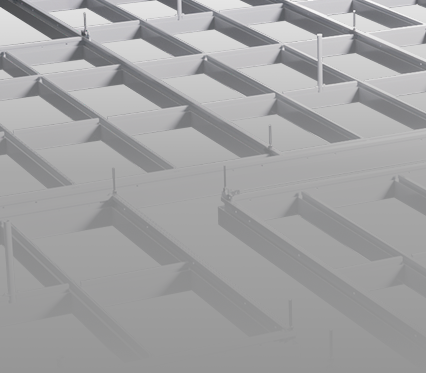

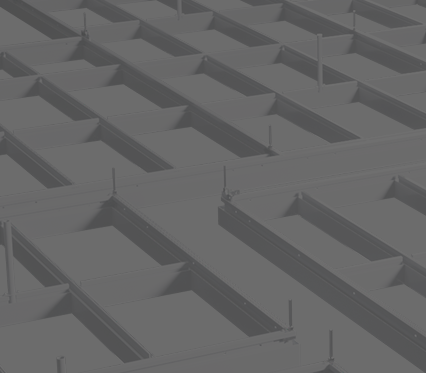

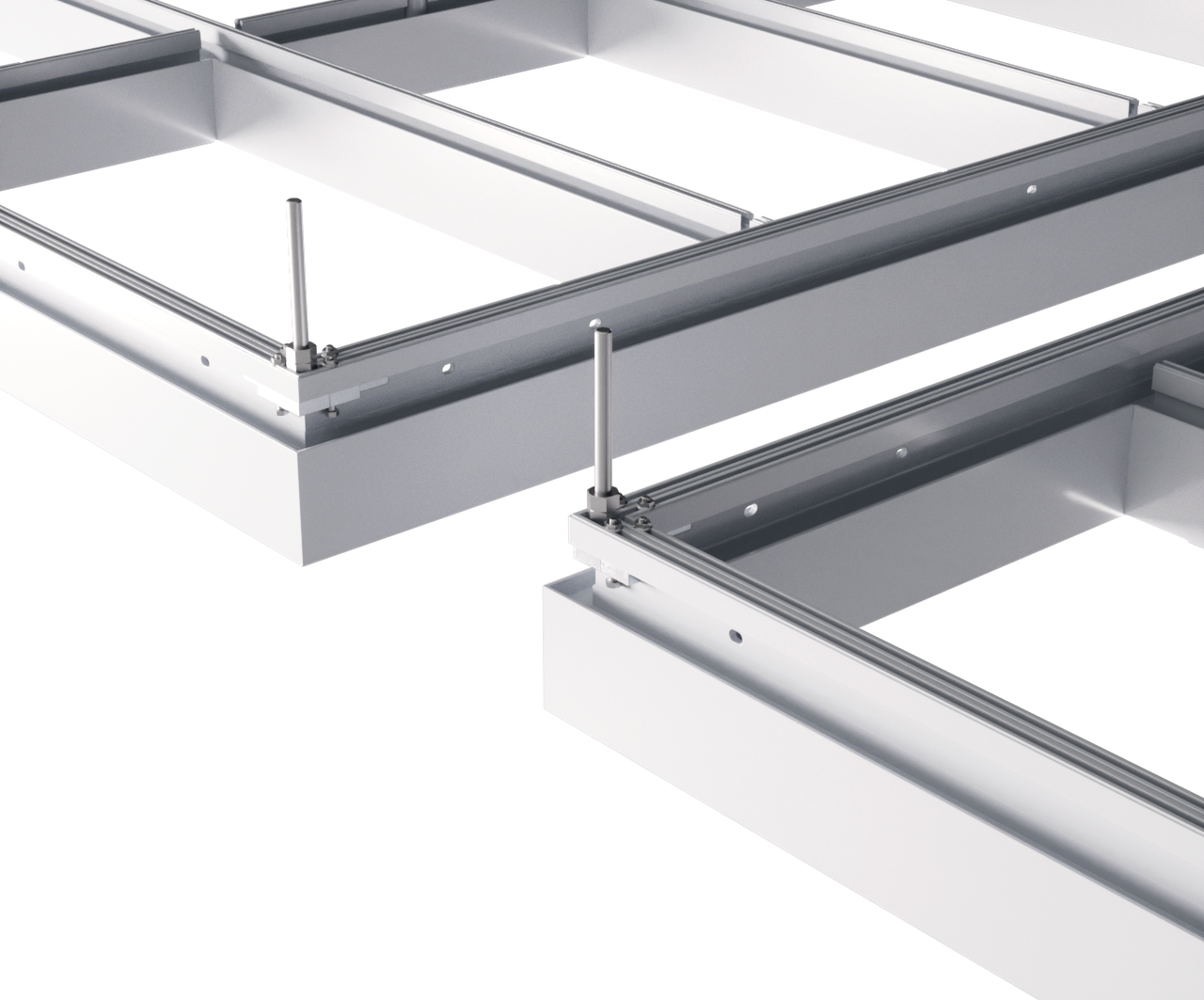

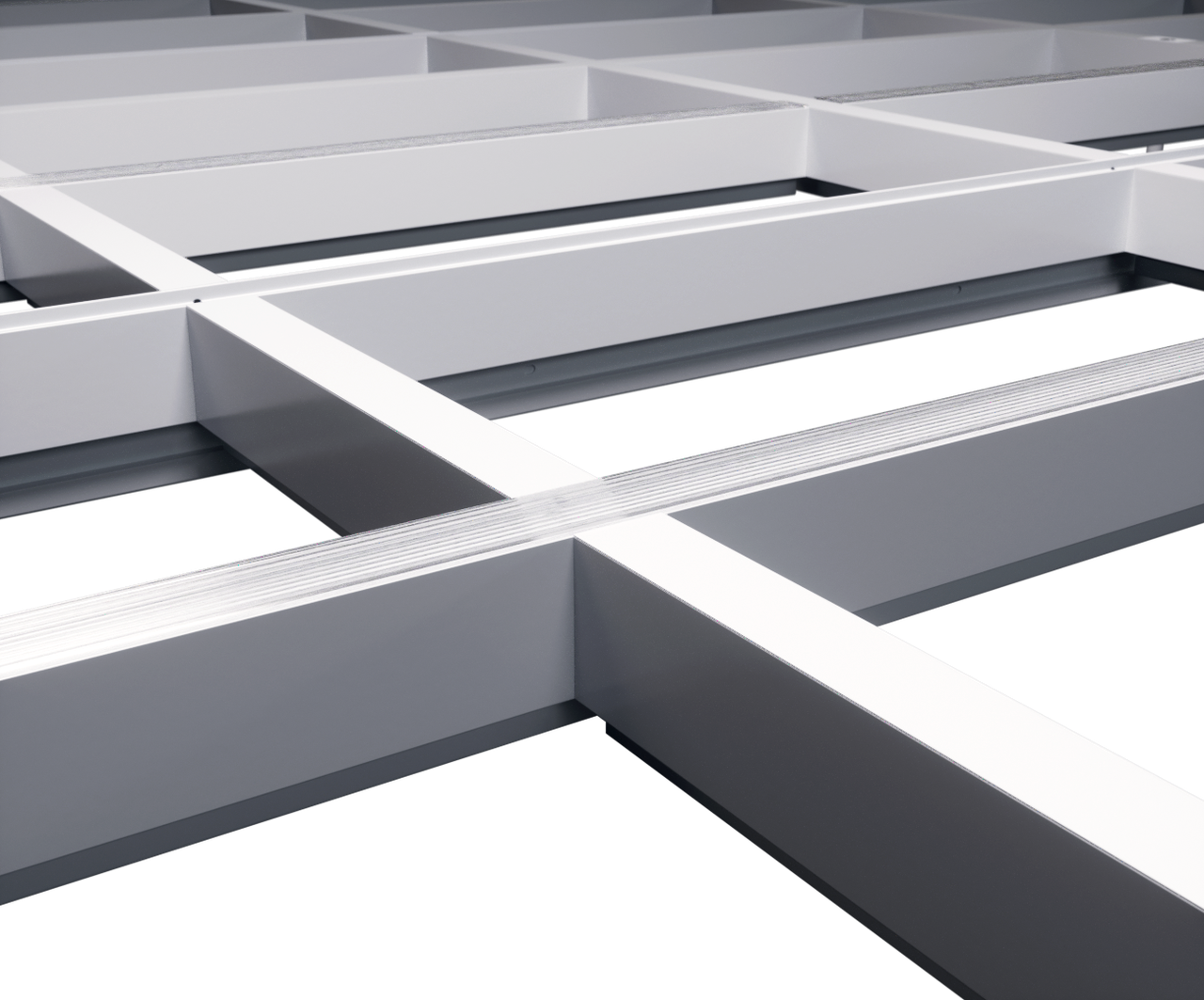

Structural Cleanroom Grid System

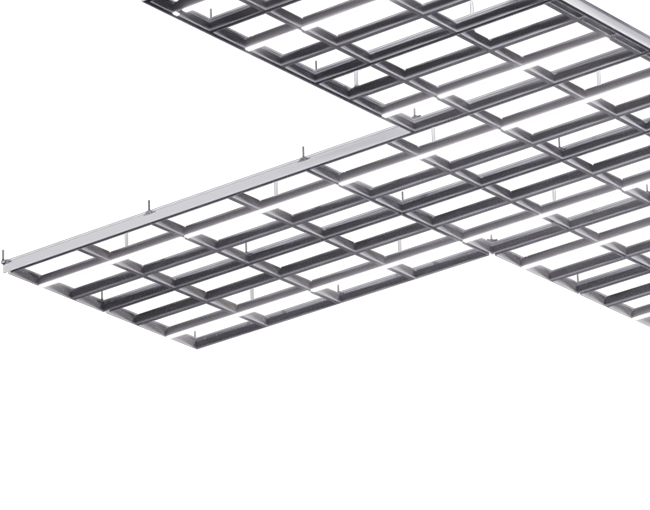

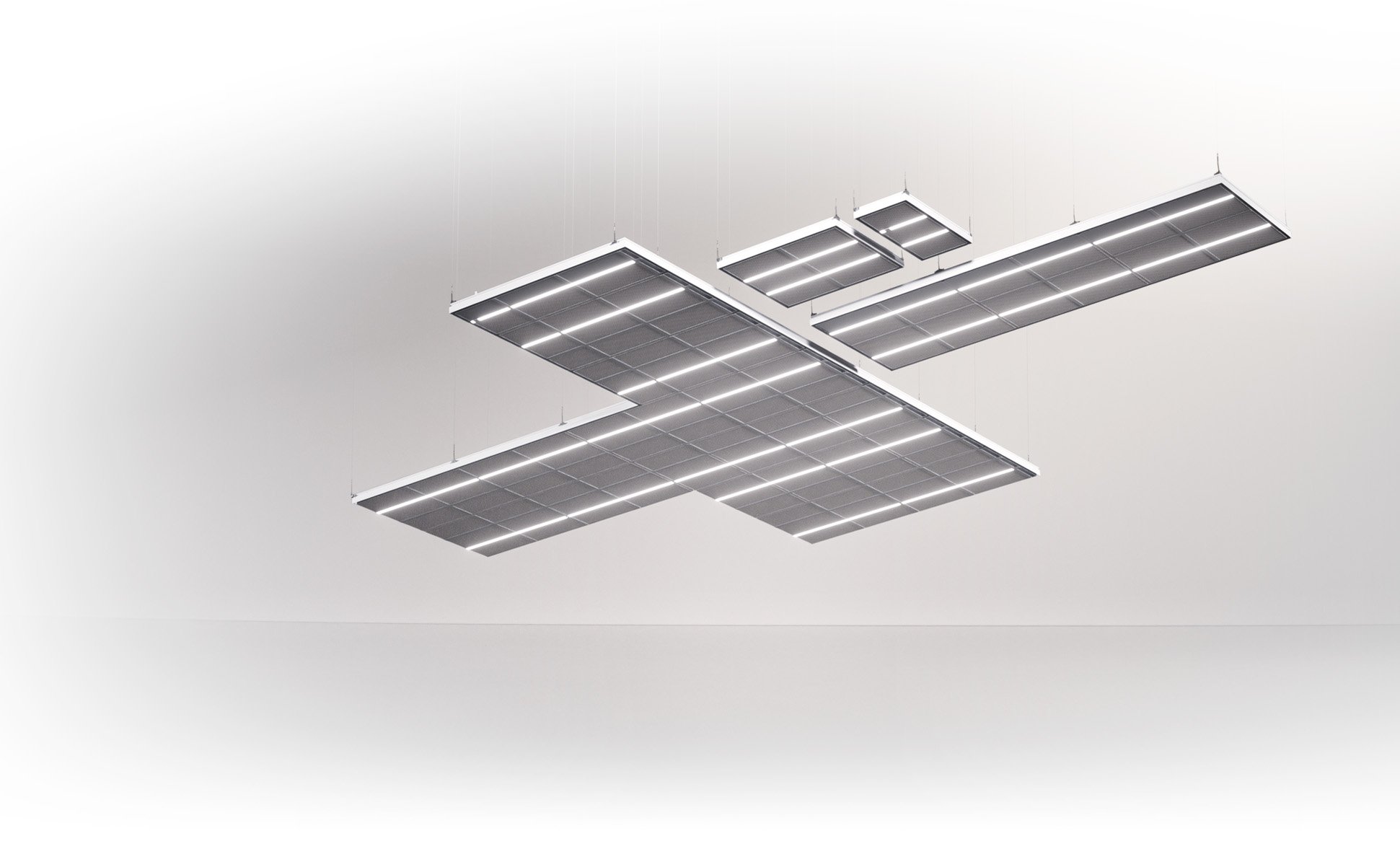

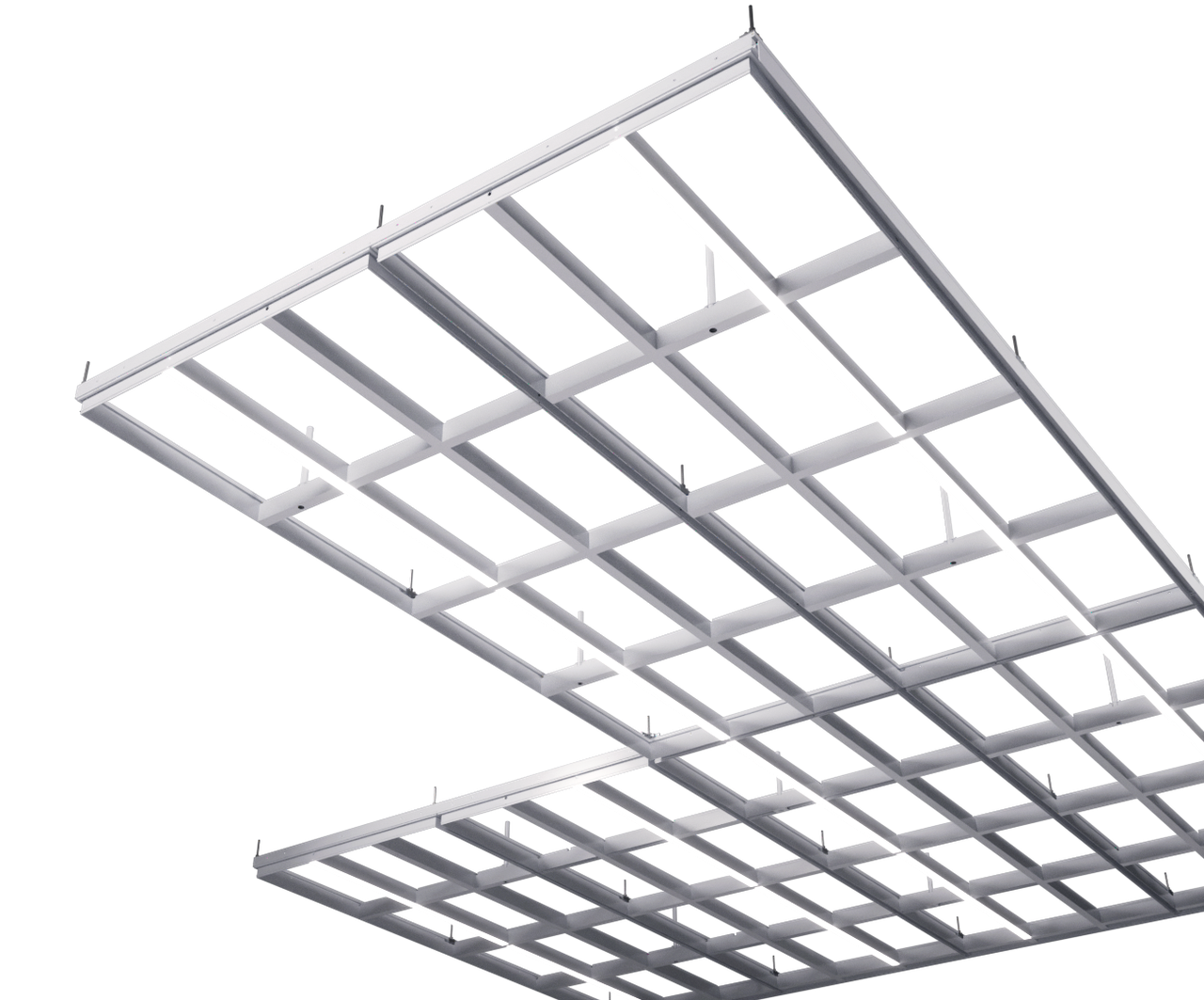

Our Cleanroom Grid is the robust "skeleton" of the cleanroom environment. Unlike standard T-bar ceilings, this is a fully welded, structural framework engineered to support the weight of maintenance personnel walking above the ceiling. It integrates the critical barrier seal, lighting, and fire protection into a single, seamless extrusion, eliminating the need for separate penetrations and ensuring a zero-bypass seal for HEPA/ULPA filters.
Benefits & Features
Unstoppable Protection
The robust, load-bearing framework integrates the critical barrier seal, lighting, and fire protection into a single, zero-bypass extrusion that doesn’t have to wait for maintenance.
- True Walk-On Capability - Engineered to safely support live loads (maintenance personnel) and dead loads (piping, cable trays), allowing for overhead maintenance without shutting down the cleanroom below.
- Zero-Bypass Seal - Features a continuous, factory-welded channel (Gel or Gasket) that perfectly mates with filter knife-edges, guaranteeing an air-tight barrier against contaminants.

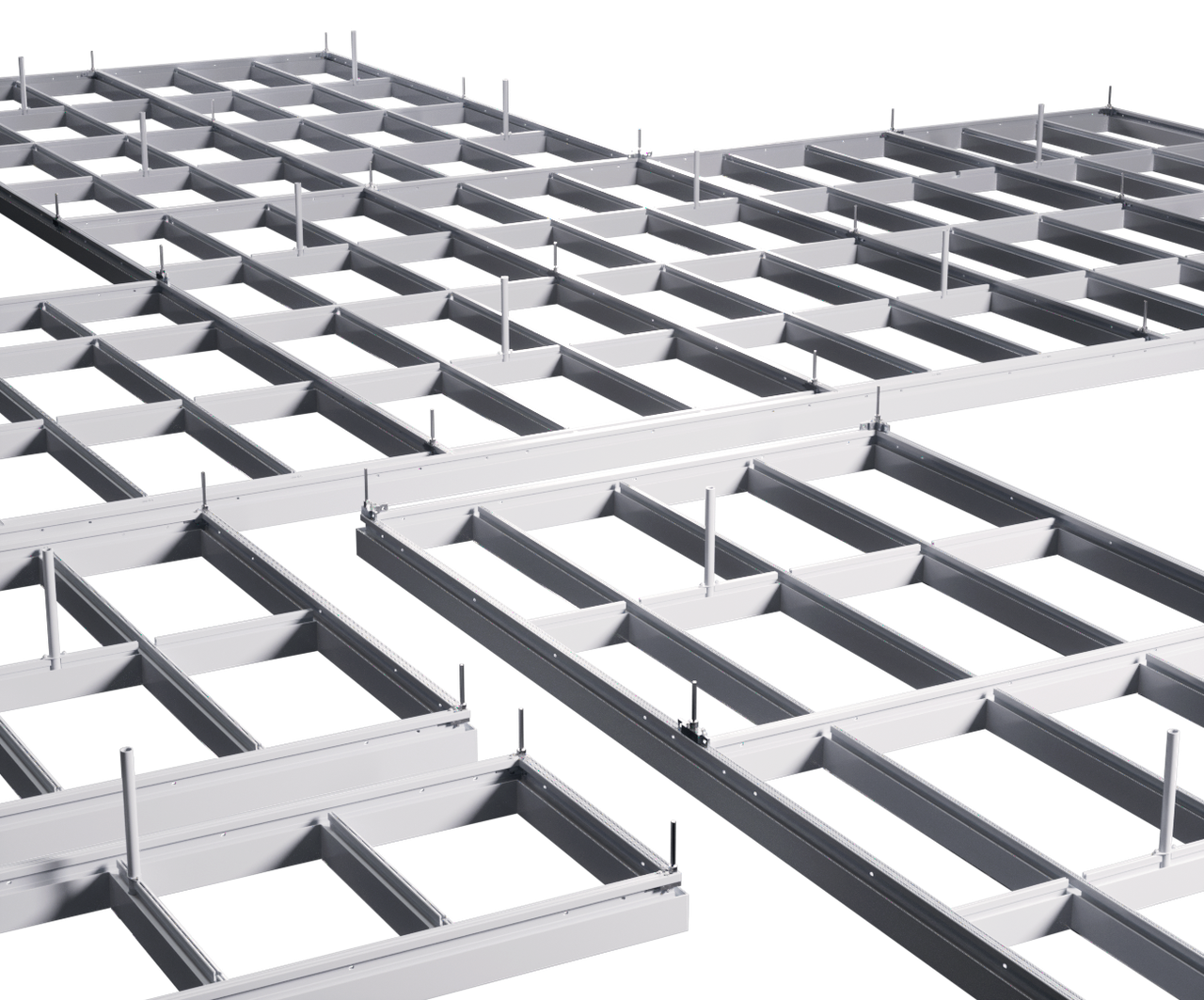

- Modular Installation - Ships in large, pre-fabricated modules (up to 8’ x 20’) to drastically reduce field installation time and labor costs compared to stick-built grids.

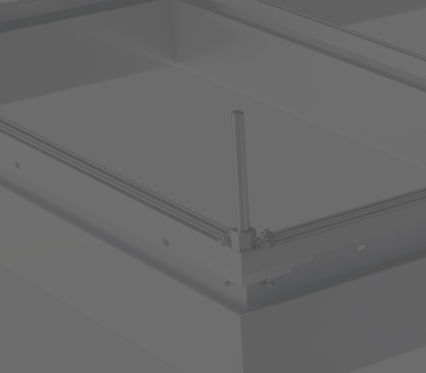

- Hygienic Design - Smooth aluminum or stainless steel extrusions with ¼ turn filter clips eliminate particle-generating screws and difficult-to-clean crevices.
Technical Specifications
Performance Stats
- Material - Powder Coated Aluminum, 304 Stainless, or 316L Stainless Steel.
- Configuration - Top Load (Gasket/Gel) or Bottom Load (Gel).
- Module Size - Up to 8’ x 20’ shipping sections.
Industries Served
When Progress Can’t Wait
Our Grid Systems support continuous cleanroom environments with contaminant-blocking design in every detail.
- Semiconductor Fabrication (Fabs)
- Biopharmaceutical Manufacturing
- Medical Device Assembly
